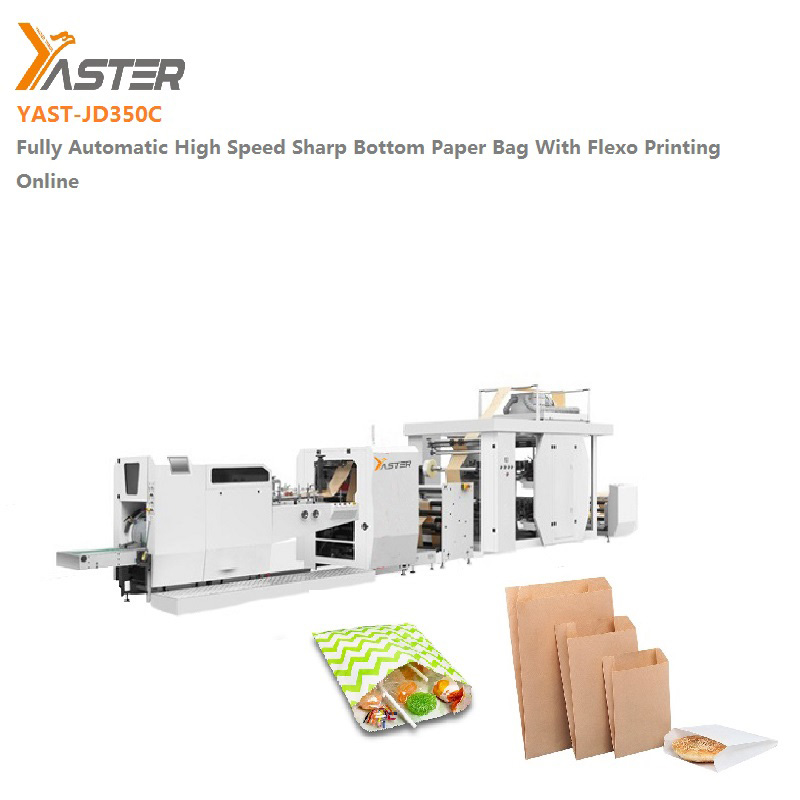

JD350C V bottom with gusset or without gusset paper bag making machine with flexio printing online

PRODUCT DESCRIPTION

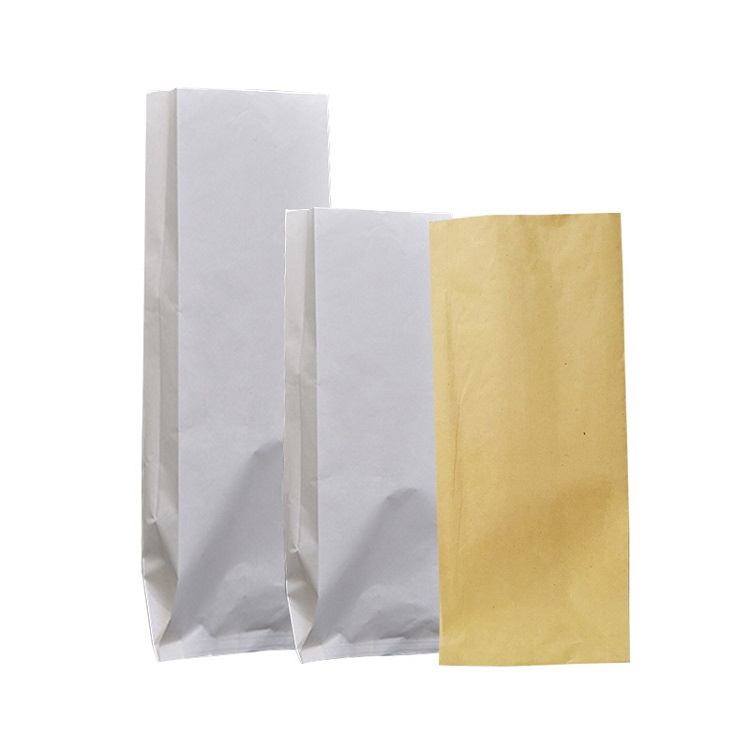

Yast-JD350C,is a fully automatic flat/v sharp bottom paper bag making machine with flexo printing online which suit for bakery ,medical,dried fruit,snack food and normal envelope,feed material,and so on.

This machine link printing online function, according to their own products customized color and pattern, different sizes of different printing plate



Product instruction

3.In terms of functions, the machine is mainly divided into five steps :

1). Unloading area, one health type start, raw material loading and unloading adopts hydraulic lifting structure, unwinding adopts automatic constant tension control, so that the paper will not pull and break when running at high speed, no waste.

2). Adopt German original REXROTH servo motor with German original SICK photoelectric eye correction to accurately track the size of the printed bag.

3). Raw material correction adopts Italy SELTRA to reduce the time to adjust the position of the roll.

4). Using the original Rexroth PC, through the high-speed bus Ether Cat, to ensure the stability of high-speed operation.

5). Collection part, automatic counting collection function, automatic stacking, convenient and effortless.



Product Parameter(specification)

Model

YAST-JD350 2C/4C

Cutting length

165-715mm

Bag length

160-710mm

paper bag width

70-350mm

Insert size

20-120mm

Bag mouth height

15/20mm

paper thickness

35-80g/m

Machine speed

50-600pcs/min

paper roll width

160-960mm

Roll paper diameter

∅1100mm

Inner diameter of paper

∅76mm

Film width

80-280mm

Rolling film thickness

0.020-0.037mm

Rolling film Diameter

∅500mm

Printing Area



Printing width

100-760mm

Printing length

165-715mm

Printing speed

10-120m/min

Color accuracy

≥±0.20mm

Plate thickness

2.28mm+0.38mm customized requirement of client

Machine power

380V 3Phase 4 lines 32.1kw

Working air current

≥0.36m3/min,0.5-0.8MPA

Machine weight

10000-11000kg    40.5-43.5kw

Machine size

12000*2200*3000mm

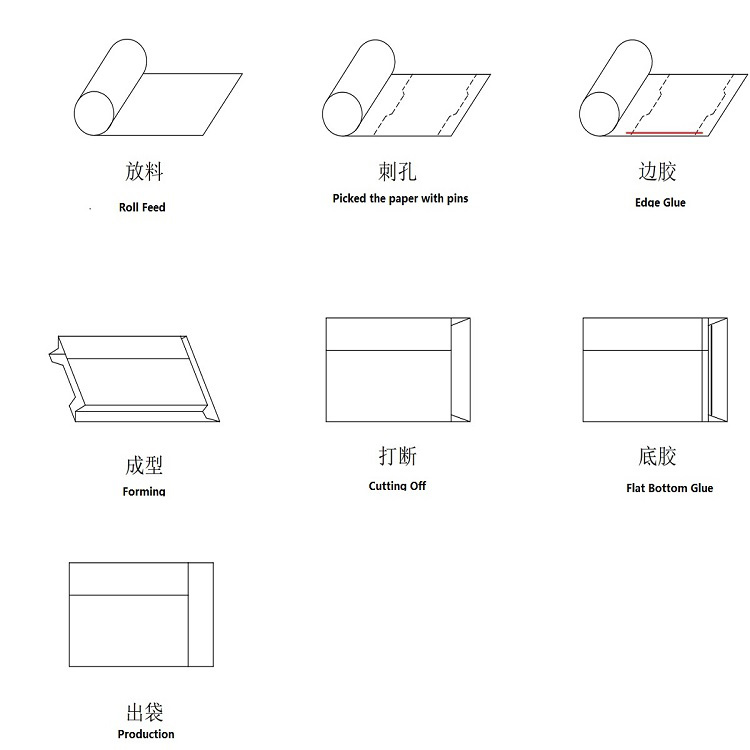

The  flow chart



Machine details

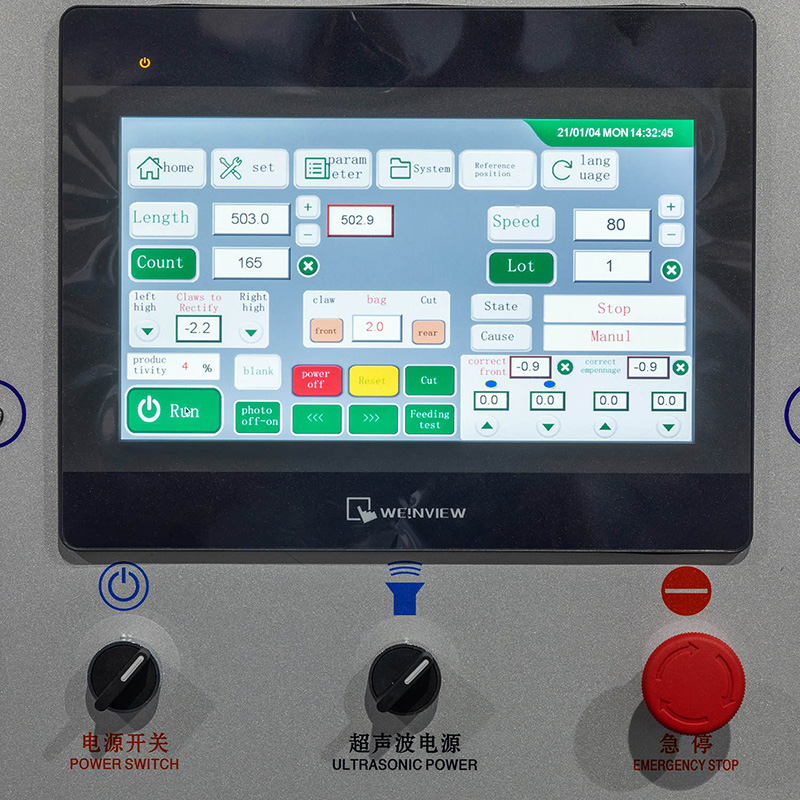

sing the French touch screen man-machine interface control system,operating at a glance, one key to star very convenient ,it control in many languages.The bag length can adjustable.

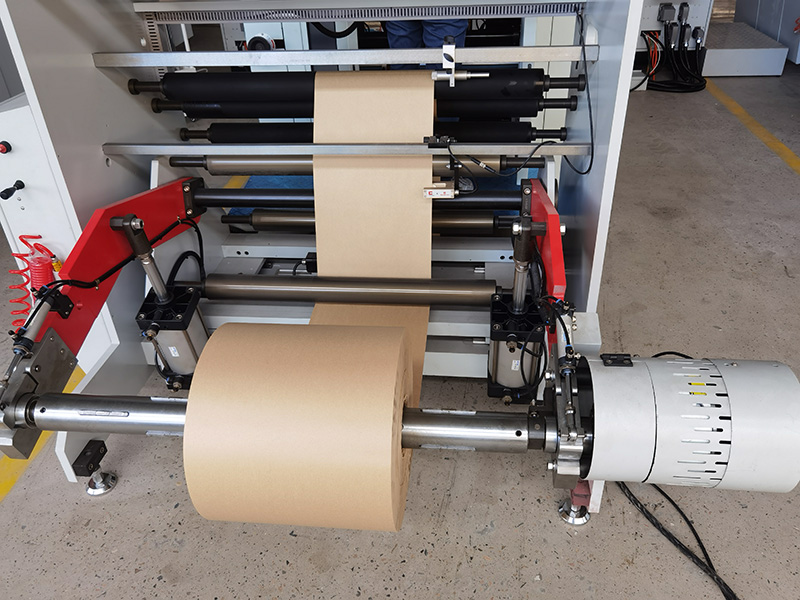

The feeding part of the hydraulic up and down, Rolling inflatable shaft: easy to use, easy paper roll placement, saving manpower.

Taiwan magnetic brake, Taiwan power can use for a long time ,even tension control.

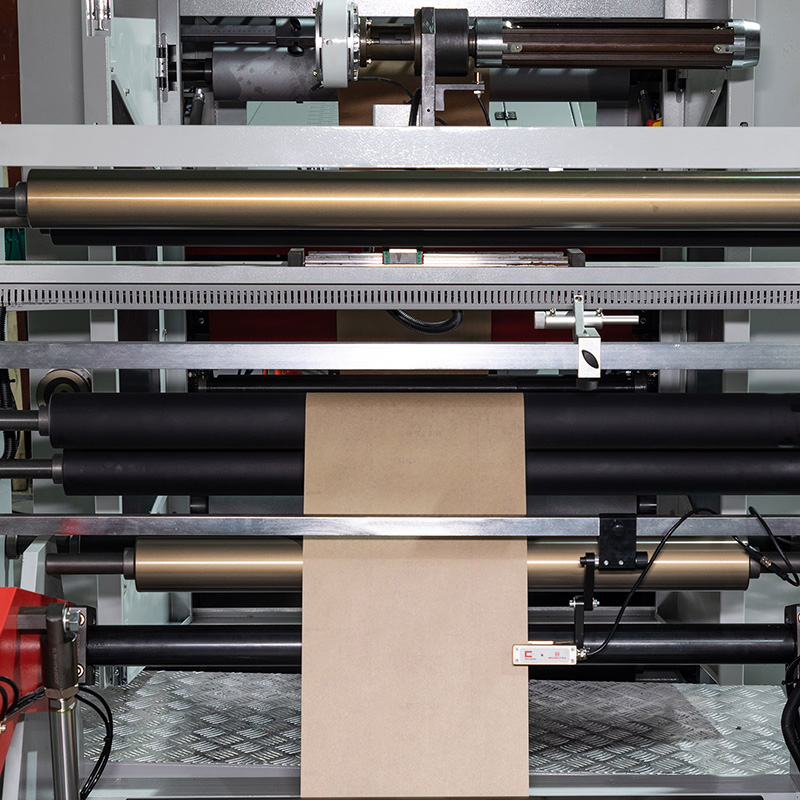

The edge correction adopts the ultrasonic edge-to-edge operation, which is not affected by the light source dust, the work is stable, the operation response speed is fast, and the alignment time is saved and the waste of raw materials is saved.

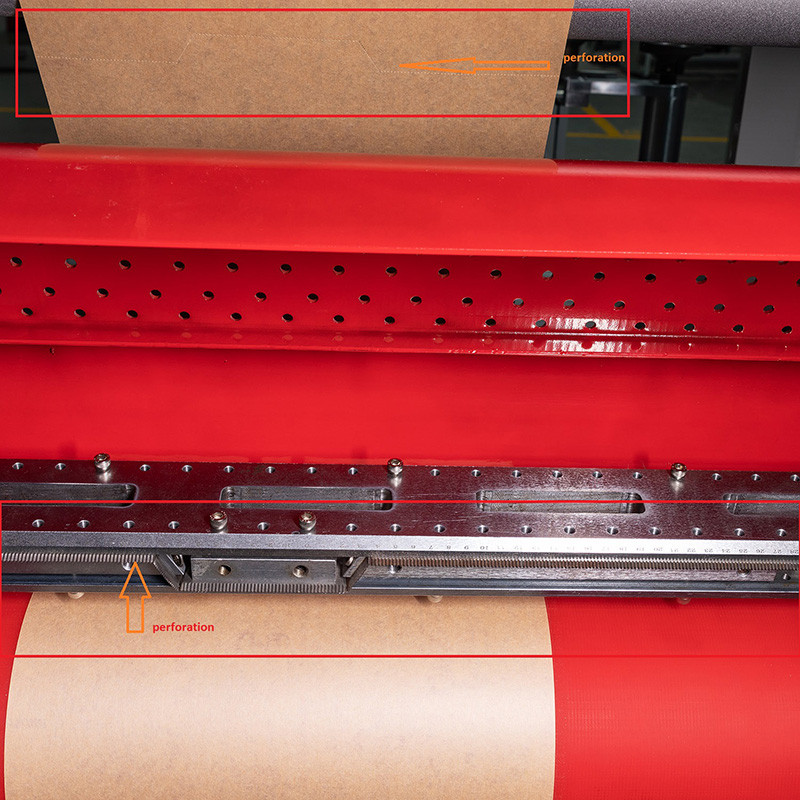

Perforation function, very good to help the length cutting, smooth and beautiful.

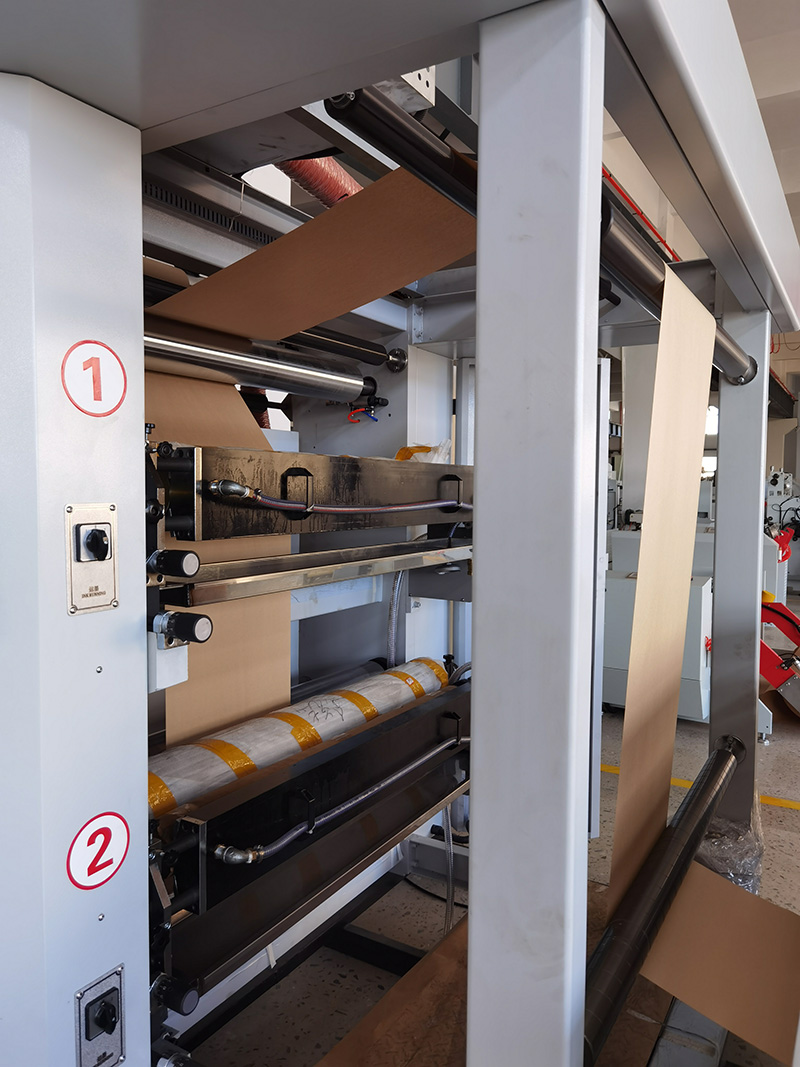

Printing unit parts, can be customized 2/4/6 color printing.Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped. After that the machine can run ink automatically. When the machine is running, it will send signals to start and lower plate printing cylinder automatically.

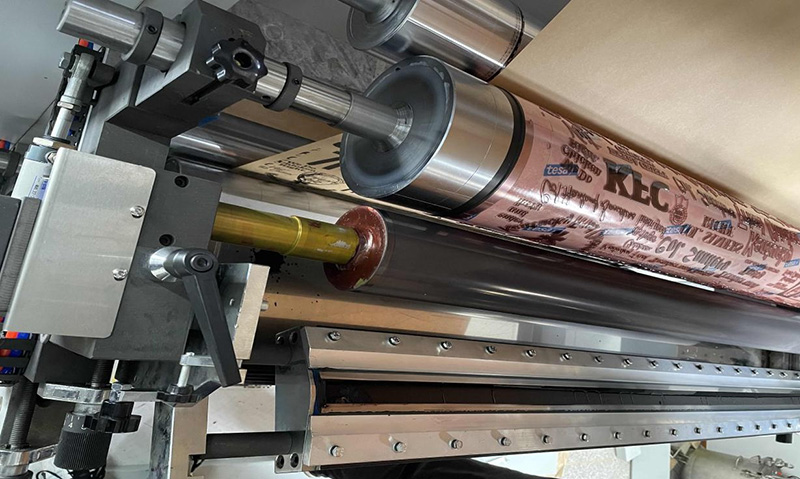

Inking with ceramic anilox and chambered doctor blade, ink pump circulation

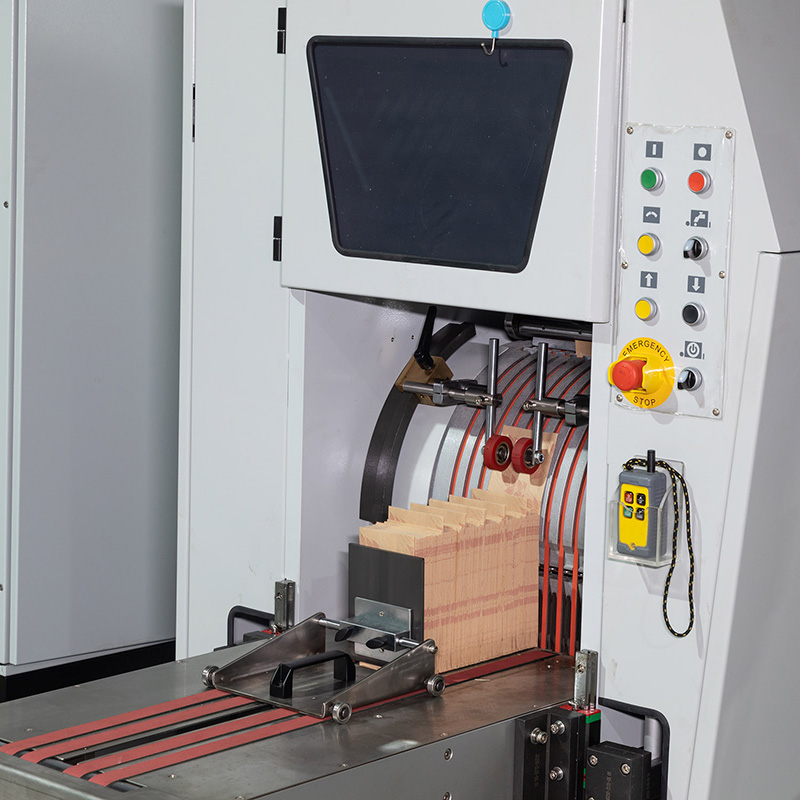

The automatic counting function can be set, and the counting is accurate.Reach the set number will naturally be higher than the other bag prompts you.



Shipping package



Deliver and serving

*After-sale Service In the case of epidemic
1. Manuals / Videos of machine installation, adjusting,setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ICT engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
4. The machine will have a 1-year warranty for the machine,2 years warranty for the electric part. During the warranty year if any of the parts broken not by man-made.(Wear parts  excepted. We 'll send you a wearing parts list). We will free charge to replace the new one for you. The warranty will begin after the machine send out we received the B/L.



Demo and Testing?

You are welcome to visit our factory anytime for the machines’ demo.

We will provide testing and running videos when the machine leaves the factory



What about warranty of machine?

We offer a 12-month warranty. During the warranty period, we provide free replacement of  damaged parts due to quality problems. All  failures caused by improper use of the buyer (including unauthorized modification of PC and touch screen built-in software) are not within the scope of the warranty (except for the vulnerable parts of wearing parts).
