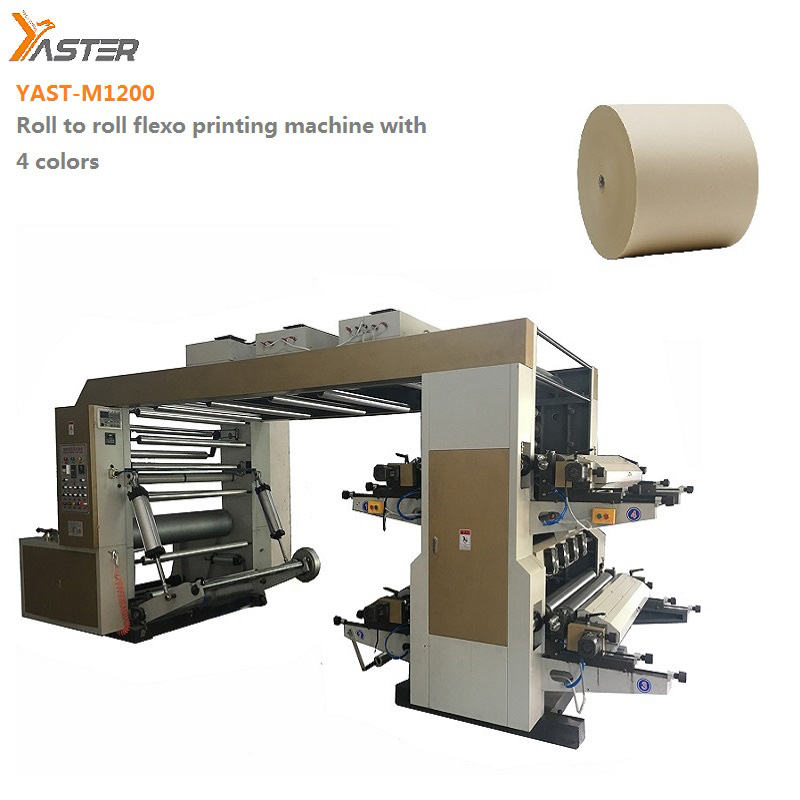

High speed overlapping type synchronous belt flexo printing machine

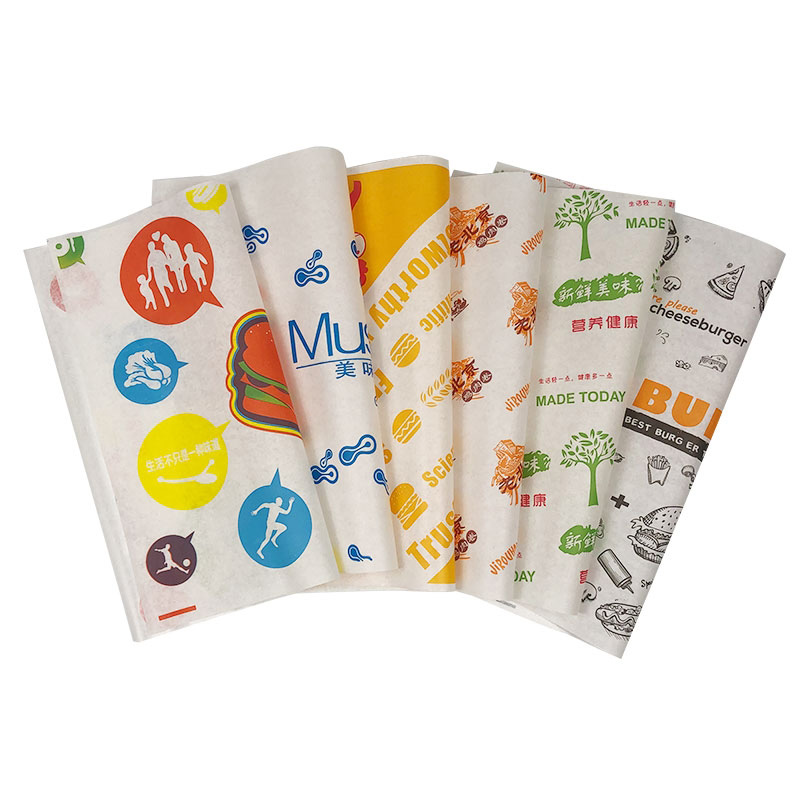

YAST-M1200 This is a 4-color roll-to-roll flexo printer with a wide feeding width that can be customized according to the customer's size. It is suitable for printing paper products such as posters, books, paper bags, paper cups, etc. It can also be used for film, wrapping paper, cellophane,copy paper,pp,LDPE and so on.
Characteristics
1.The machine use synchronous belt working, low noise,and it can usefully control the machine on and off speed change,setting the color be accurate.
2.Machine rewinding is hydraulic and pneumatic control , and with friction winder,make the material more tight and more smooth.
3.Machine unwinder is with EPC and hydraulic , no need lift the material by manual.
4.Ceramic anilox, can print more exquisite patterns.
5.Machine is use hydraulic up and down, printing gear is helical gear.
6.Machine is controlled by inverter.
7.Machine speed :120 m/min.Printing speed :8-100m/min.
8.The machine will automatic alarm before the machine start.
Technical Parameters
|
Model |
NXC4-1200 |
|
Machine color |
4+0 |
|
Printing material |
Paper: 40-350g/m2 |
|
Max. Feeding material width |
1250mm |
|
Max. Effective print width |
1160mm |
|
Max. Effective print length |
200-1000mm |
|
Max. Mechanical speed |
90m/min |
|
Max. Printing speed |
10-80m/min |
|
Register precision |
Longitude:±0.20mm ; Transverse:±0.20mm (register precision no change during this machine speed up or down) |
|
Thickness of plate ( include the tape) |
2.28mm (at client require ) |
|
Machine power |
28KW |
|
Machine weight |
About 4200kg |
|
Machine size |
4.6m X 2.7mX 2.4m |
|
Machine voltage |
3P,380V,50HZ (at client require ) |
Machine details

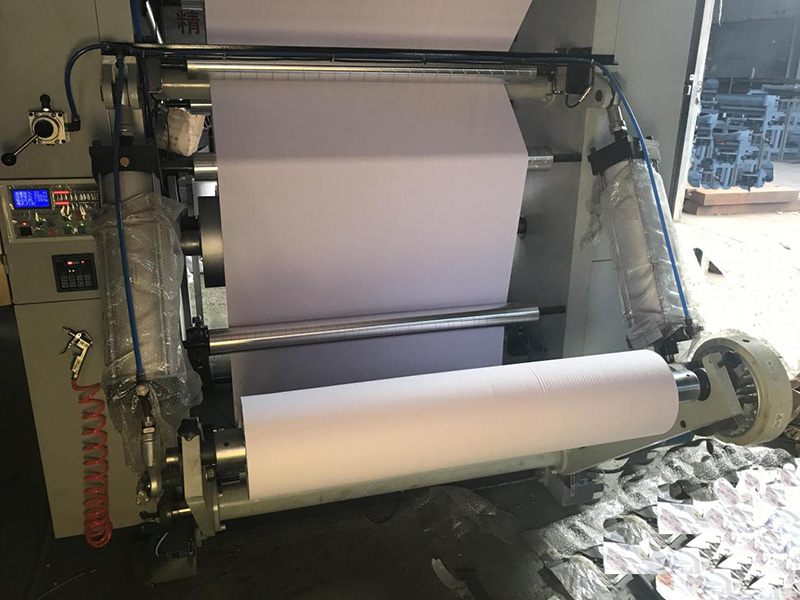

Hydraulic unwinding system,automatic stop machine when break the material,when machine stop , keep tension and avoid the material loose or line deflection.

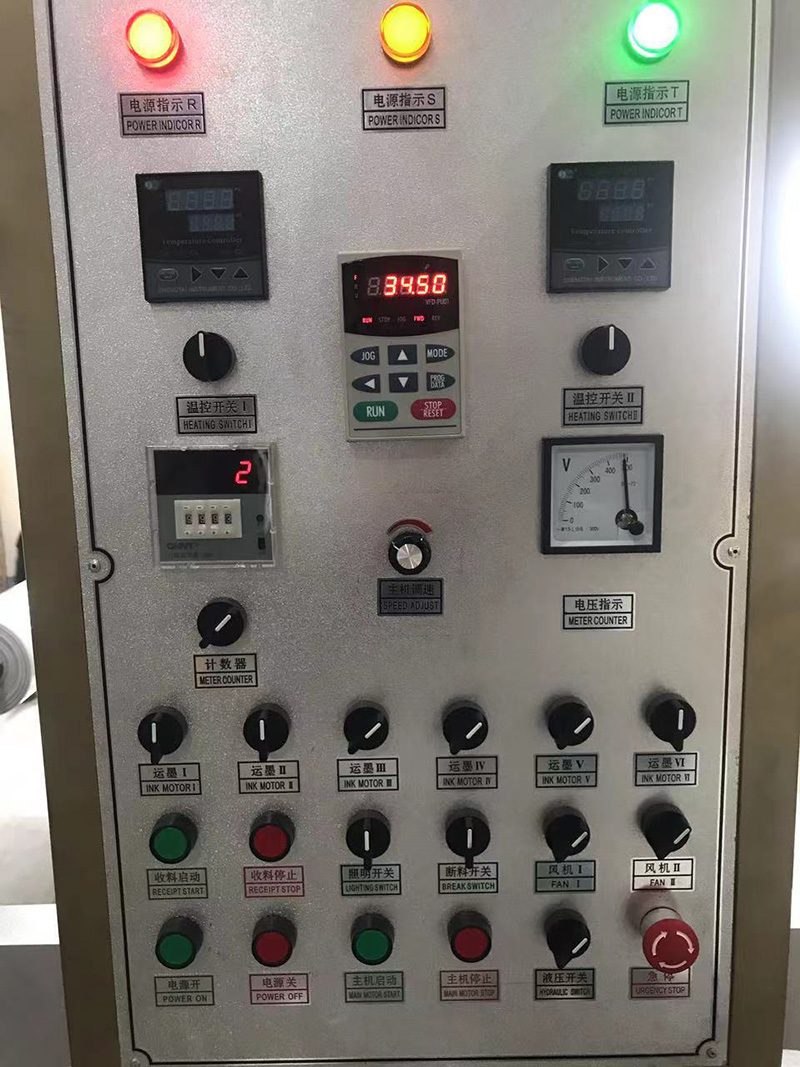

Machine operation control panel,control button distribution is clear, each button control a function, at a glance, simple operation.

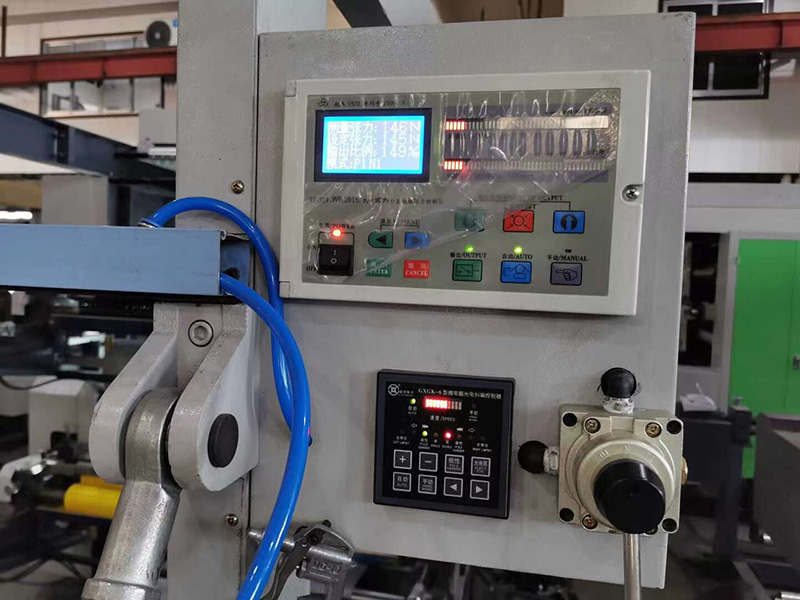

Automatic tension control screen,automatic tension control system with magnetic brake(10KG).

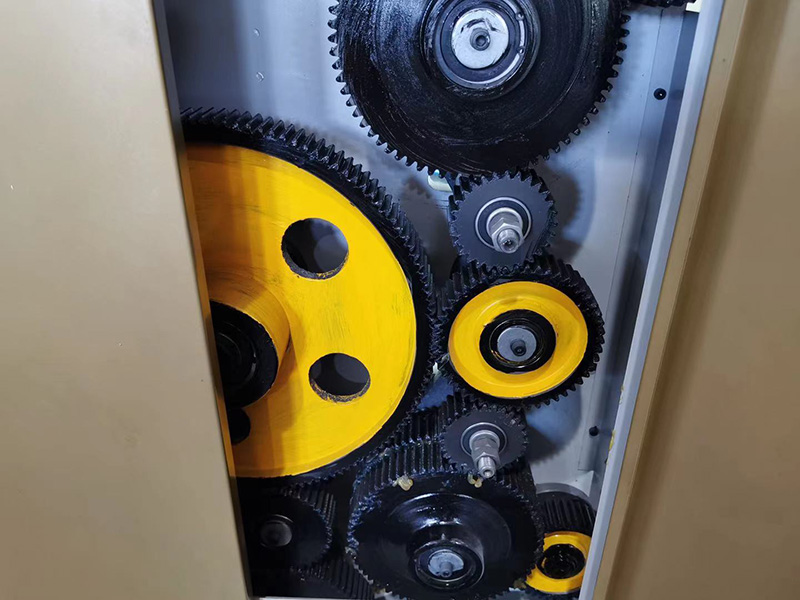

Transmission between printing roller and anilox roller: Helical gears. It's a helical gear and a synchronous belt, with high accuracy and low noise，to ensure longer service life of the machine.

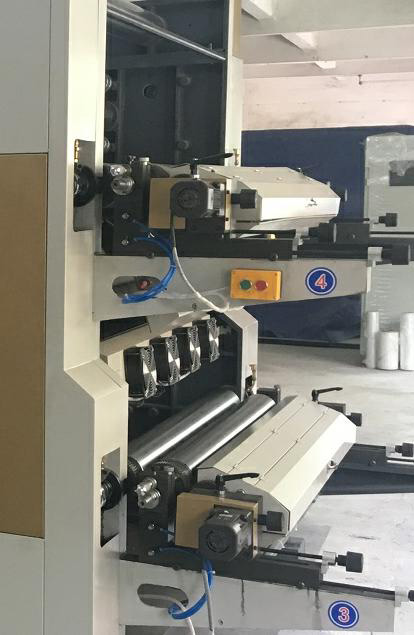

Printing roller lifting system: Automatic Hydraulic cylinder control roll up and down.Ceramic anilox which transfer ink evenly,improve the printing effect.300-600 lines/in.

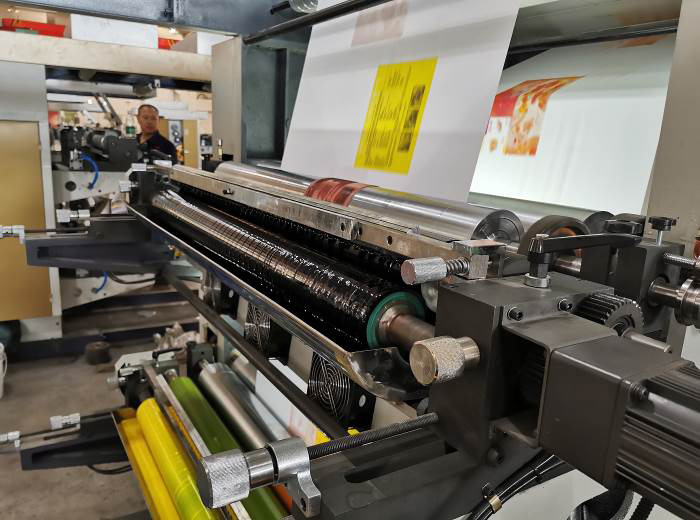

Unidirectional scraper and lid, the machine at high speed to prevent ink spatter, ink uniform printing.
Shipping packing
Wrapped with film.
After-sale Service
1. Manuals / Videos of machine installation, adjusting,setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ICT engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
4. The machine will have a 1-year warranty for the machine. During the warranty year if any of the parts broken not by man-made.(Wear parts excepted.We 'll send you a wearing parts list). We will free charge to replace the new one for you. The warranty will begin after the machine send out we received the B/L.
