it uses paper roll in blank or printed as raw material, consists of automatic center-forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. This machine really realized that full automation production can effectively save the labor cost.
Model |
YAST-FD330 |
YAST-FD450 |
Cutting length |
270-530mm |
270-530mm |
paper bag width |
120-330mm |
210-450mm |
paper bottom width |
60-180mm |
90-180mm |
paper thickness |
60-150g/m |
80-150g/m |
Machine speed |
30-220pcs/min |
30-200pcs/min |
Production speed |
30-180pcs/min |
30-150pcs/min |
paper roll width |
380-1050mm |
660-1290mm |
Roll paper diameter |
∅1300mm |
∅1300mm |
Inner diameter of paper |
∅76mm |
∅76mm |
Machine power |
380V 2Phase 4 lines 15kw |
380V 3Phase 4 lines 15kw |
Machine weight |
8500kg |
9000kg |
Machine size |
1000*3700*2200mm |
1000*3800*2200mm |
1.Use France Schneider Touch Screen Human-Computer interface, operate and control easily, one key to star, whole machine only use 1 or two labors.
2.Adopt Germany Original REXROTH PC Control, Integrated with optical fiber, ensure high speed running steadily. There is an automatic alarm system, automatic stop in case of failure.
3.Germany Original REXROTH SERVO MOTOR and Germany Original SICK PHOTOELECTRIC Correction, tracking printing bag accurately.
4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt Italy SELECTRA, reduce adjustment time.

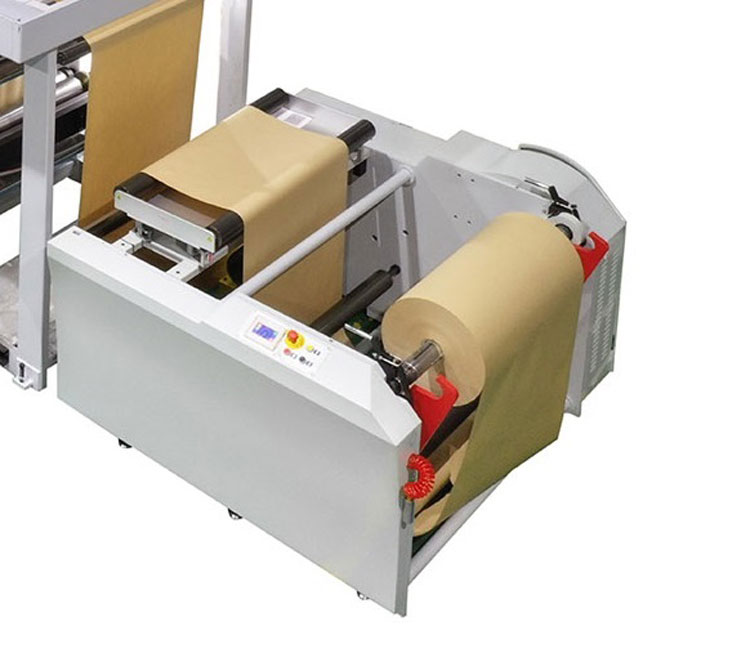

Rolling inflatable shaft: easy to use, adopt automatic Hydraulic cylinder, make it automatic to load the roll up and down, just by pressing the button to start the cylinder. Help you out of any carry job.

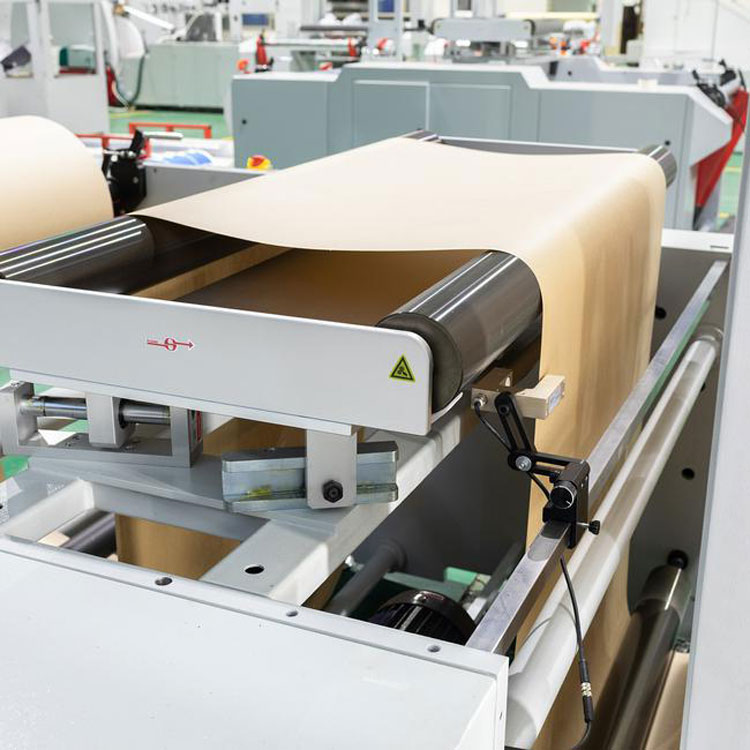

Italian SICK correction system , so that the paper will not run off under the condition of high-speed operation, fine tuning automatic correction.

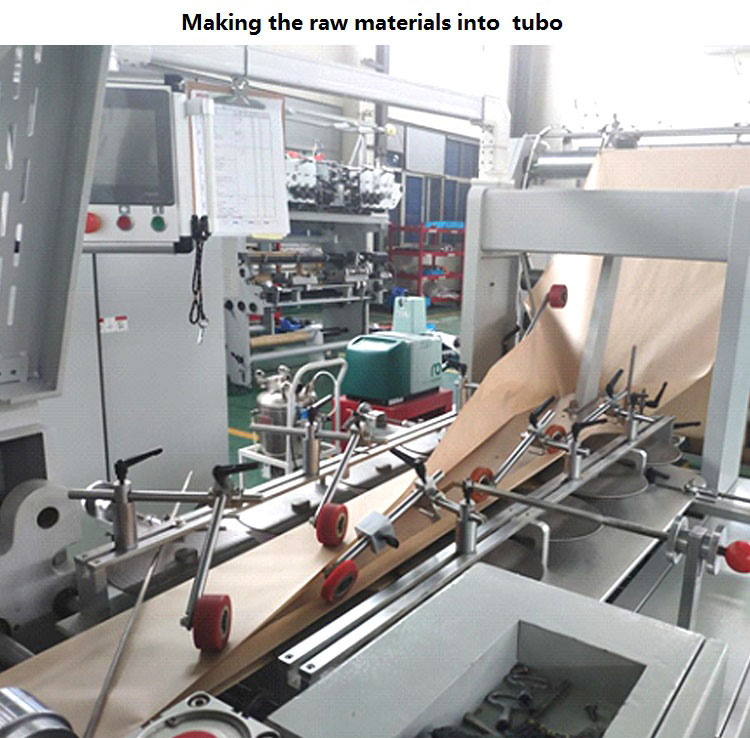

Fast folding molding into tube, no broken paper, no folds, the width can be adjusted automatically without changing the size template.
Servo motor traction, powerful power, precise cutting length size, cutting knife can have two choices, one is flat mouth, one is toothed.

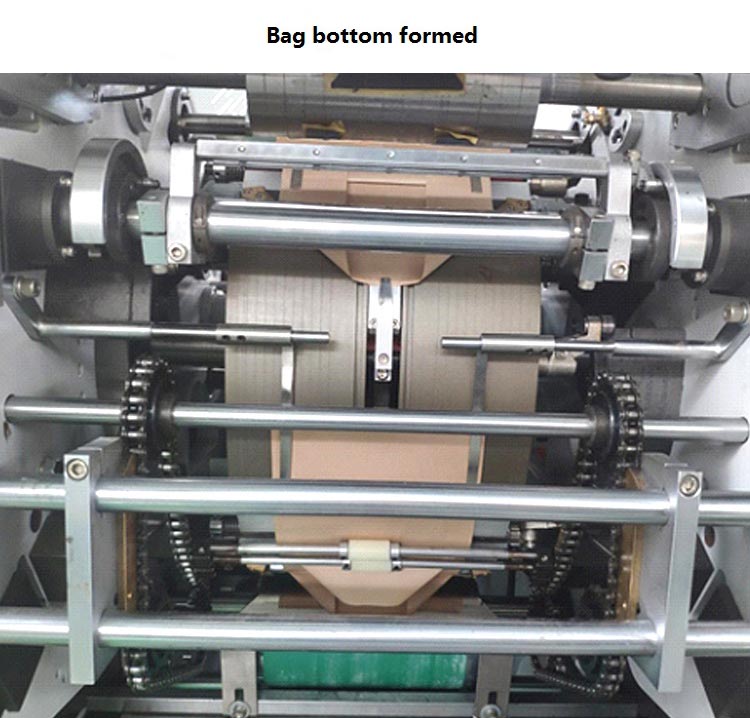

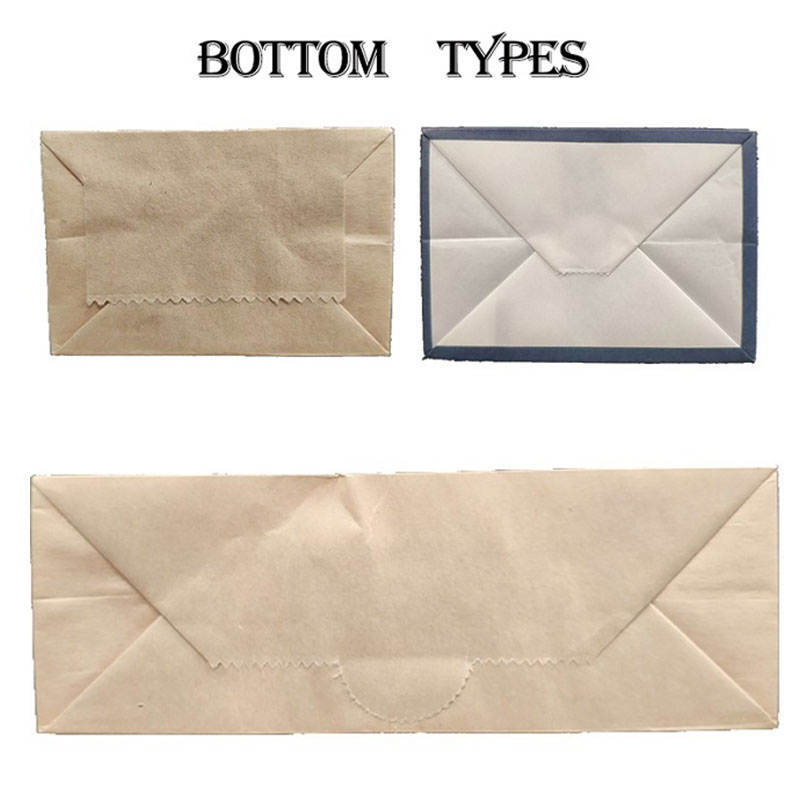

The bottom of the bag is folded and formed, and the bag is pressed flat through the hub wheel, so that the bag is more convenient for storage and sorting,automatic bottom gluing.
The automatic counting function can be set, and the counting is accurate.Reach the set number will naturally be higher than the other bag prompts you.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper.
Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available.
Q: What is the payment term?
A: After signing of the contract ,the total amount of 30% advance payment, factory acceptance payment before delivery after the machine testing is ok.
Q: How long is the delivery time?
A: About 60 working days after receiving the deposit. The factory will decide whether to change the delivery date when the order is confirmed.
Q:How long is the guarantee time?
A: We offer a 12-month warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems. All failures caused by improper use of the buyer (including unauthorized modification of PC and touch screen built-in software) are not within the scope of the warranty (except for the vulnerable parts of wearing parts).
Q: what can you buy from us?
A: Paper Bag Making Machine, Non-Woven Bag Making Machine, Printing Machine, Disposable epidemic prevention equipment machine.
Q:What about spare parts?
We have a list of accessories, including wearing parts. We will send you an extra pair of wearing parts for spare. We will teach you how to replace the wearing parts by video.
Q:How to install?
A: For the purchase of new machines for customers, our company can arrange engineer to install machinery and for the training of machine operators; for the second time or more need to move Machine and training services, our company provides compensation for the movement and training services.
