YAST-FD330w automatic square bottom paper bag machine use paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time, The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
The whole machine is controlled by computer central control system, touch screen display, servo motor control paper bag length, can produce multiple specifications of paper bag.
|
Model |
YAST-FD190W |
YAST-FD330W |
|
Cutting length |
190-370mm |
270-530mm |
|
paper bag width |
80-190mm |
120-330mm |
|
paper bottom width |
50-105mm |
60-180mm |
|
The hole width |
50-120mm |
50-120mm |
|
The hole height |
50-120mm |
50-120mm |
|
paper thickness |
50-130g/㎡ |
60-150g/㎡ |
|
Machine speed |
30-260pcs/min |
30-200pcs/min |
|
Production speed |
30-150pcs/min |
30-150pcs/min |
|
Max. window size |
120-120mm |
120-120mm |
|
paper roll width |
1300mm |
1300mm |
|
Roll paper diameter |
∅1300mm |
∅1300mm |
|
Inner diameter of paper |
∅76mm |
∅76mm |
|
Machine power |
380V 3Phase 4 lines 31kw |
380V 3Phase 4 lines 36kw |
|
Machine weight |
8500kg |
11000kg |
|
Machine size |
12500*3700*2200mm |
14500*4000*2100mm |
1.Use France Schneider Touch Screen Human-Computer interface, operate and control easily.
2.Adopt Germany Original REXROTH PC Control, Integrated with optical fiber, ensure high speed running steadily.
3.Germany Original REXROTH SERVO MOTOR and Germany Original SICK PHOTOELECTRIC Correction, tracking printing bag accurately.

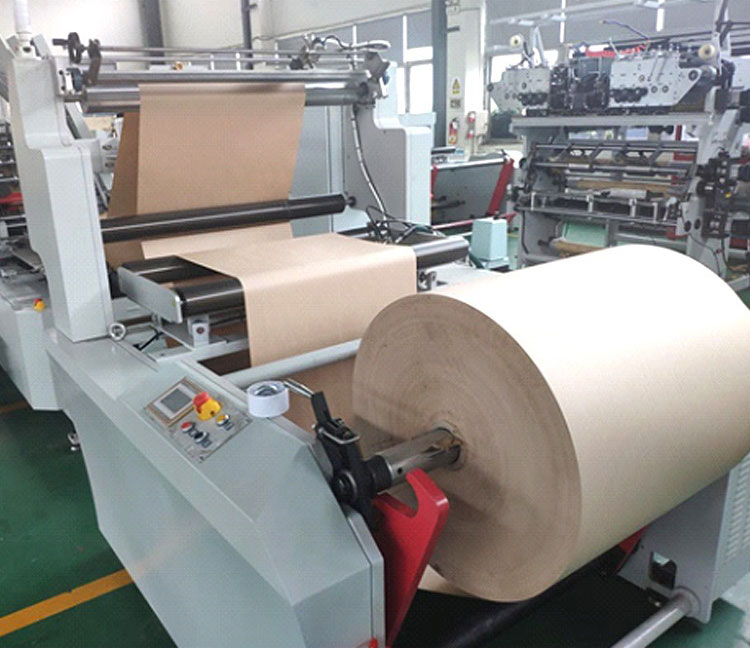

4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt Italy SELECTRA, reduce adjustment time.

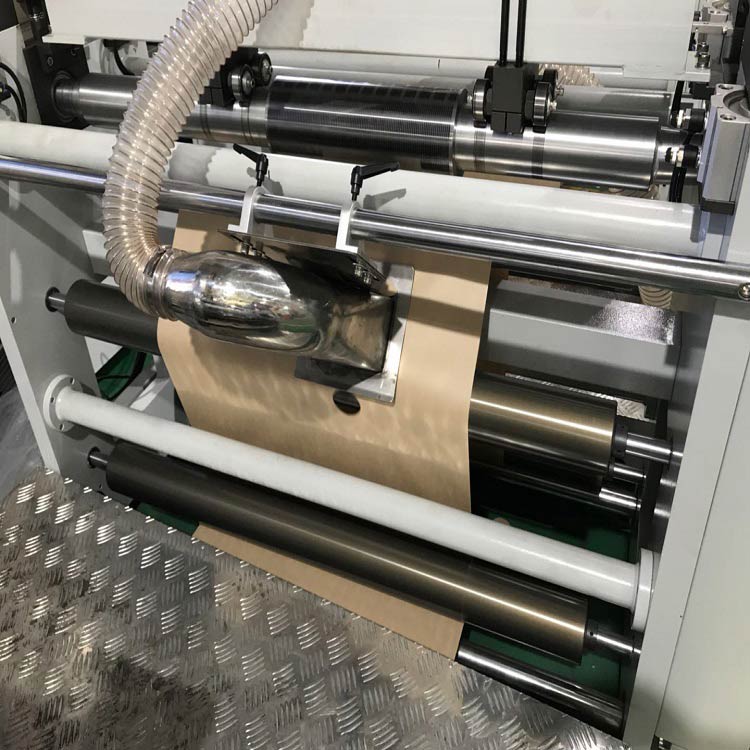

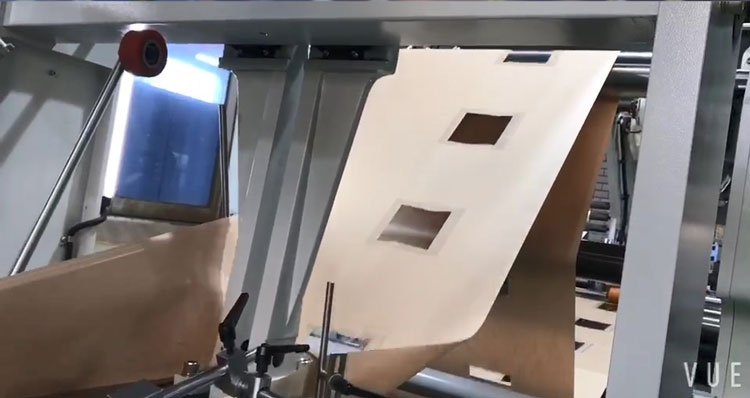

The opening window unit. The copper pipe just sucks up the cut paper.

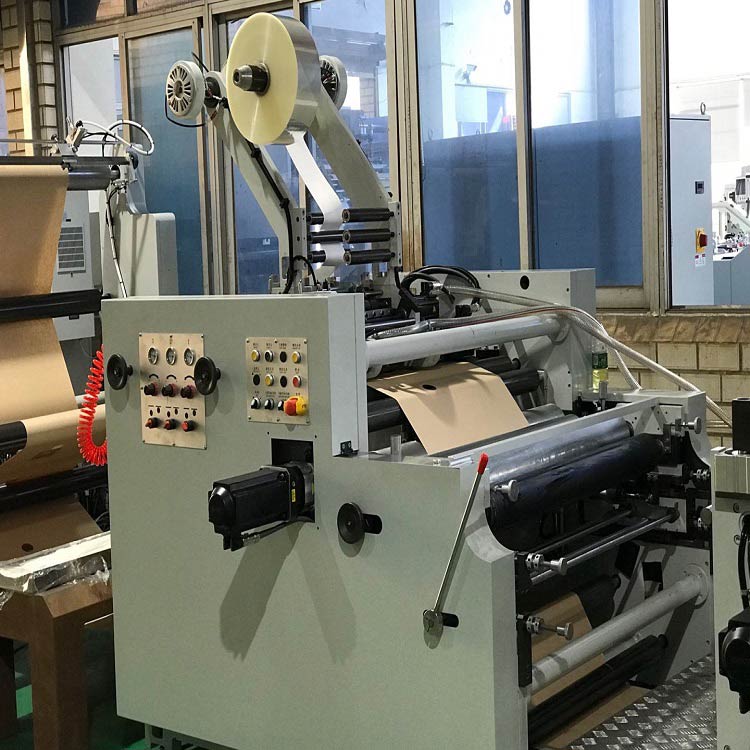

Stick film unit.The machine will paste the film slices automatically.

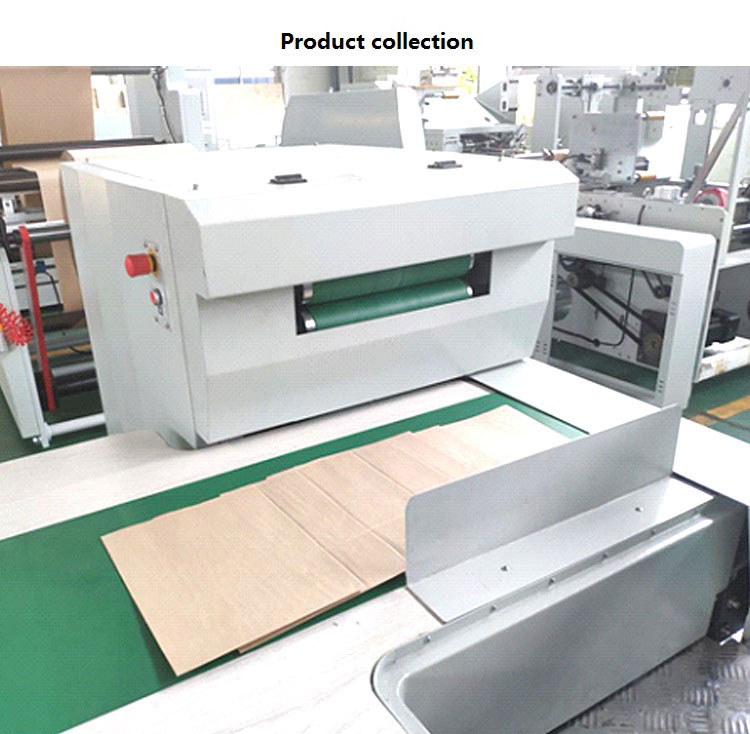

Collection and accounting unit. The bag collection is controlled by a servo motor and has a flattening function, which makes the finished bag easy to organize and pack. The automatic counting function can be set, and the counting is accurate.
We offer film wrapped in side and fumigation wood out side .
About 60 working days after receiving the deposit. We offer FOB price, Ningbo port. After signing of the contract ,the total amount of 30% advance payment, factory acceptance payment before delivery after the machine testing is ok.
The buyers concerned about the contents. For example:
1.Q:Offers you the how to pre-sale service? Such as: whether or not to provide the sample? Sample charges? Where the party to bear the freight?
A: can free to provide customers with bag samples were real machine proofing , and shooting video for customer reference.
Send in the proofing paper provided by the customer, the paper freight provided by the customer, to complete the sample bag proofing can be sent free of charge by our company.
2.Q:you provide the service of how the sale? Such as: supplying method of wearing parts? Delivery cycle (orders started)?
A: the damage in the warranty period of the fittings, our company in accordance with the warranty for its free replacement. Product delivery cycle is generally for the signing of the contract within 45 days from the date of.
3.Q:after sale service? Such as shelf life? How to provide service within the warranty period?
A: can provide 1 years of free warranty, long-term training services (the first free, second or subsequent training fees), the warranty period of machine parts can be damaged According to the number of free replacement parts.
