FD450W +D High speed square bottom paper bag machine with window +Die Cut Handle patch

PRODUCT DESCRIPTION

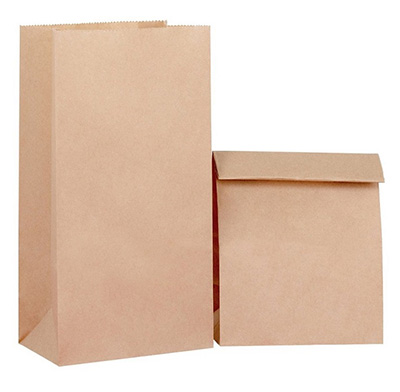

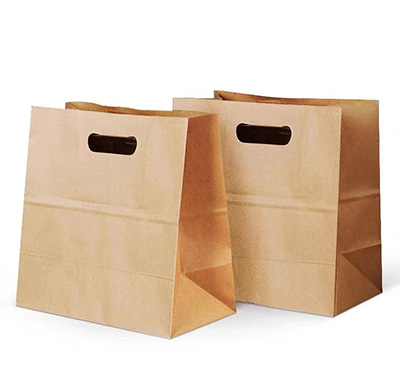

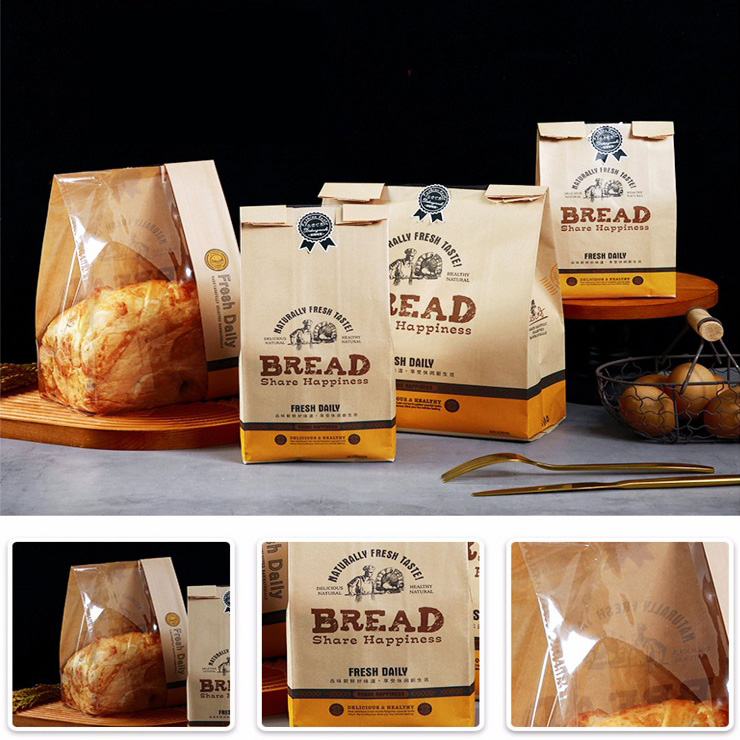

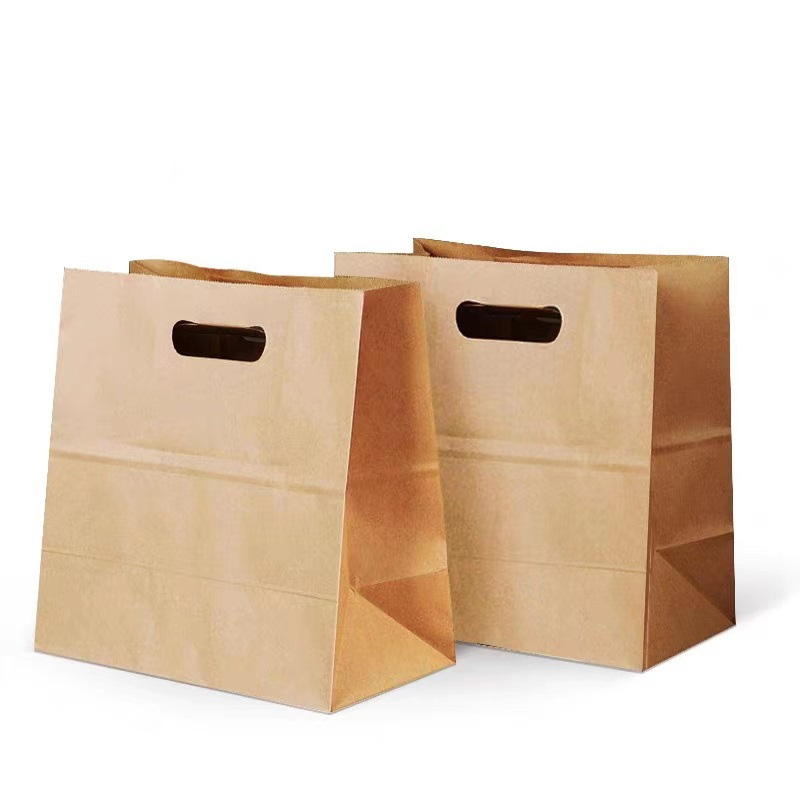

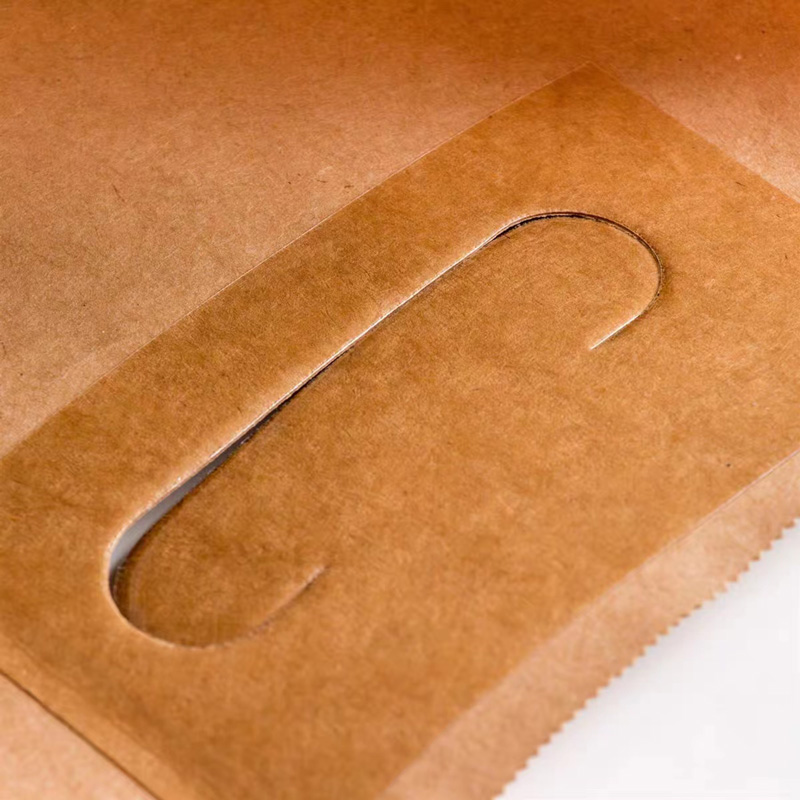

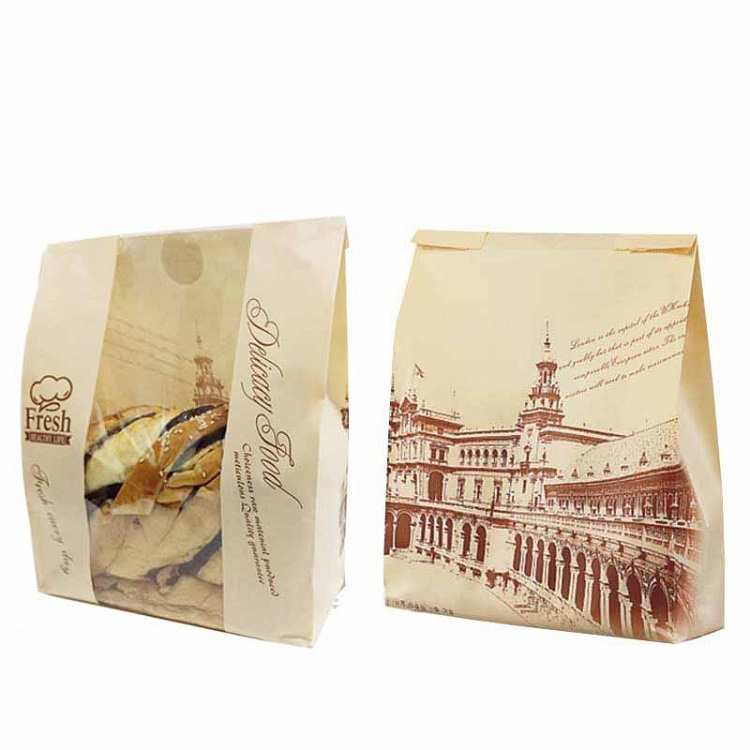

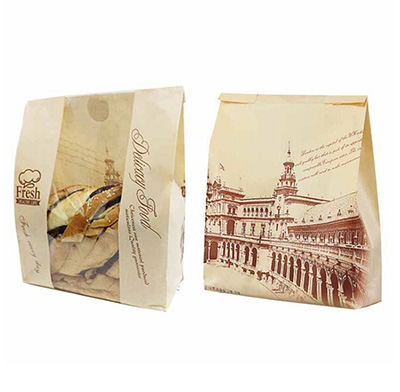

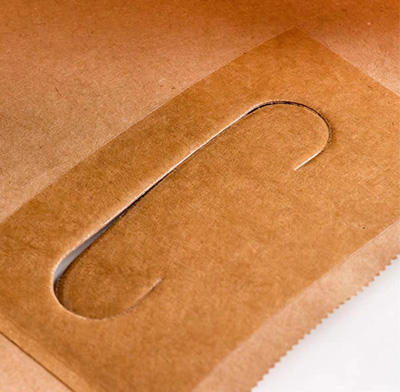

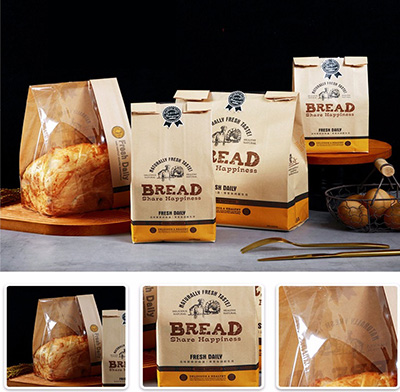

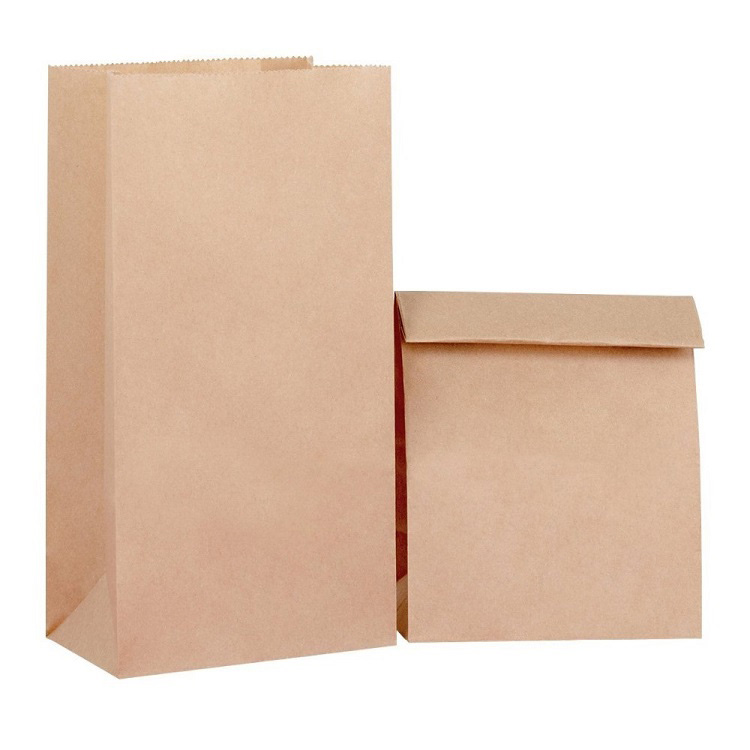

YAST-FD450W+D  Roll fed square bottom paper bag machine with opening window, it suit for bread, candy ,sugar ,rice ,coffee, tea and granular substance. You can see the thing through the window from film,also can make D -cut paper bag for gift bag, clothing bag, bread bag,fruit bag and so on .The window opening function and hand punch function can be used at the same time.





Product Introduction

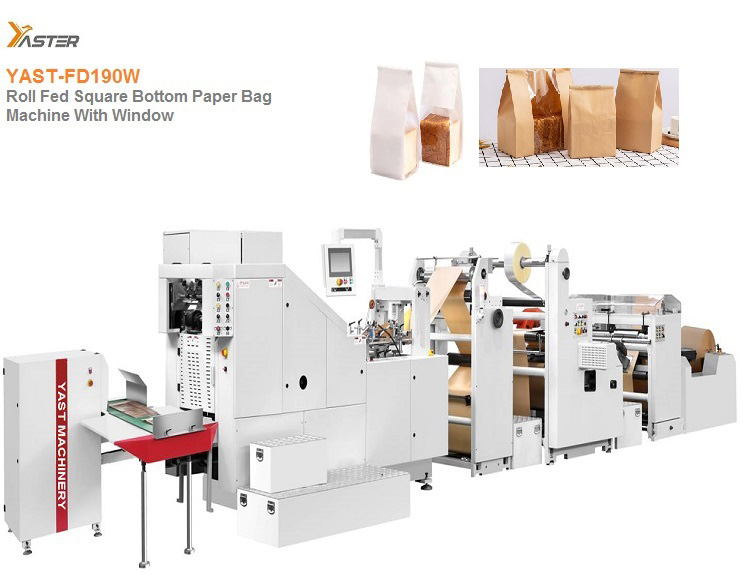

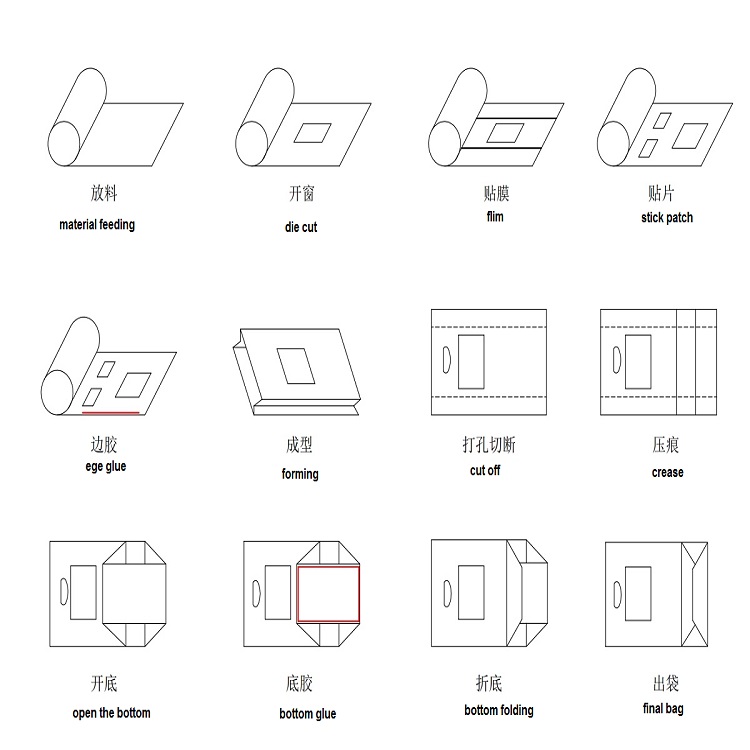

YAST-FD450W+D  automatic square bottom paper bag machine use paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time, The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
The whole machine is controlled by computer central control system, touch screen display, servo motor control paper bag length, can produce multiple specifications of paper bag.

Product Parameter(specification)

Model

YAST-FD330W+D

YAST-FD450W+D

Cutting length

270-530mm

270-530mm

paper bag width

120-330mm

210-450mm

paper bottom width

60-180mm

90-180mm

The  hole width

50-120mm

50-120mm

The hole height

50-120mm

50-120mm

Strip window size

60-150mm

60-150mm

Max. window size

120-120mm

120-120mm

paper thickness

60-150g/㎡

80-150mm

Patch bag width

190-330mm

220-450mm

Patch bag roll width

130mm

130mm

Patch handle length

75/85mm

75/85mm

Patch bag film thickness

30-60um

30-60um

Machine speed

30-200pcs/min

30-200pcs/min

Production speed

30-150pcs/min

30-130pcs/min

paper roll width

1200mm

1200mm

Roll paper diameter

∅1200mm

∅1200mm

Inner diameter of paper

∅76mm

∅76mm

Machine power

380V 3Phase 4 lines 50.4kw

380V 3Phase 4 lines 50.4kw

Machine weight

10000kg

10500kg

Machine size

15500*4200*2100mm

15500*4200*2100mm



Product feature and application

1.Use France Schneider Touch Screen Human-Computer interface, operate and control easily.

2.Adopt Germany Original REXROTH PC Control, Integrated with optical fiber, ensure high speed running steadily.

3.Germany Original REXROTH SERVO MOTOR and Germany Original SICK PHOTOELECTRIC Correction, tracking printing bag accurately.

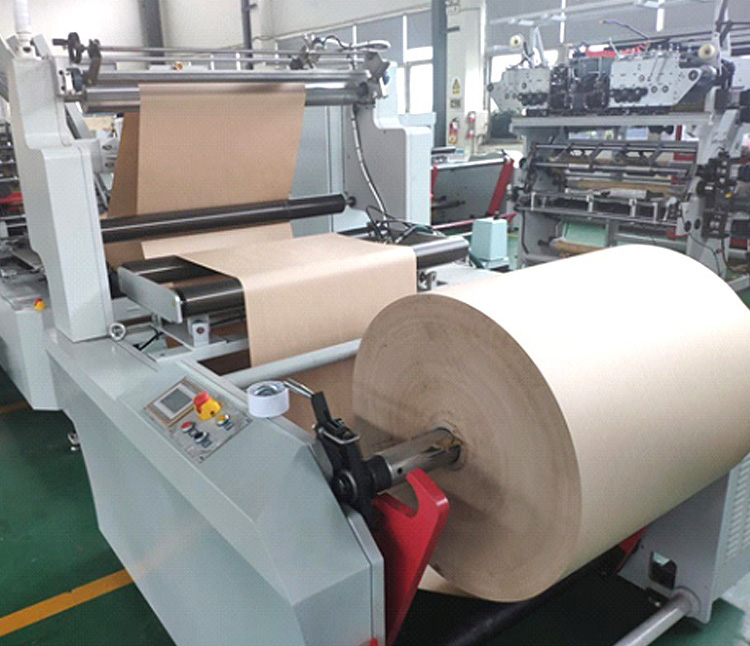

4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.

5.Raw material unwinding EPC adopt Italy SELECTRA, reduce adjustment time.



Machine details

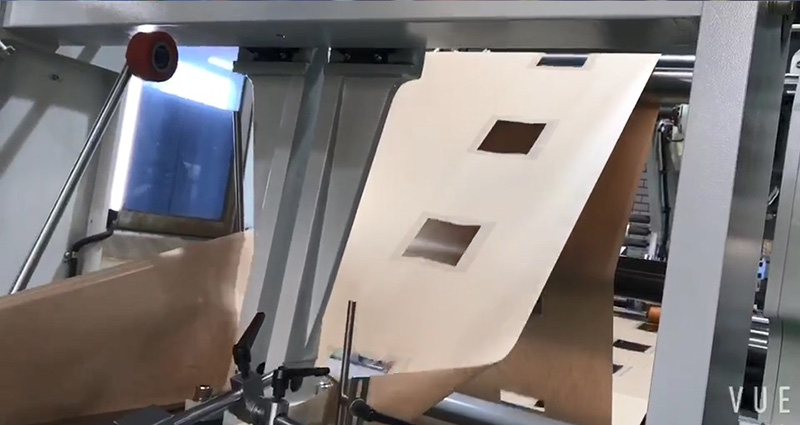

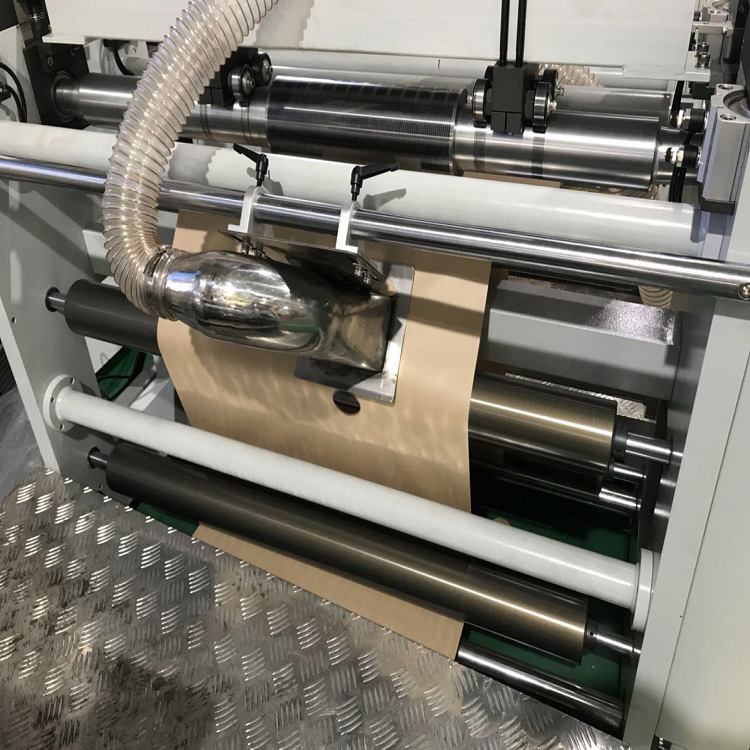

The opening window unit. The copper pipe just sucks up the cut paper.

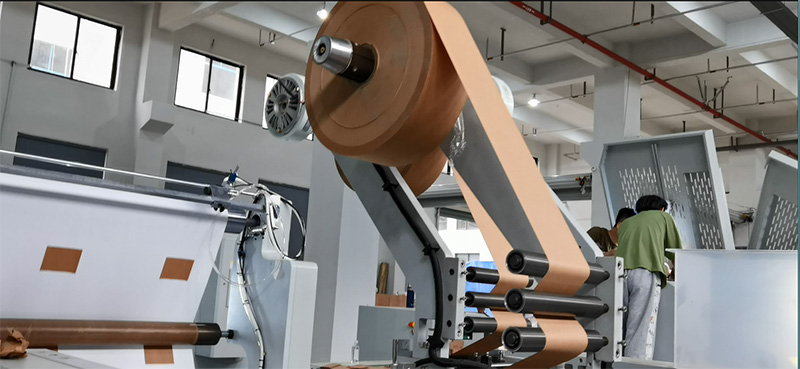

Stick film unit.The machine will paste the film slices automatically.

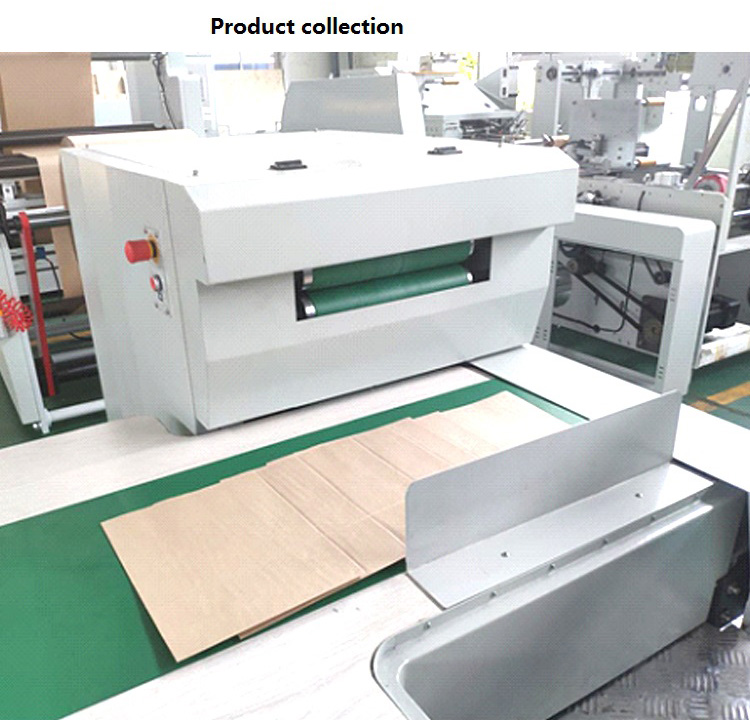

Collection and accounting unit. The bag collection is controlled by a servo motor and has a flattening function, which makes the finished bag easy to organize and pack. The automatic counting function can be set, and the counting is accurate.

Shipping package

We offer film wrapped in side and fumigation wood out side .



Delivery and serving

About 60 working days after receiving the deposit. We offer FOB price, Ningbo port. After signing of the contract ,the total amount of 30% advance payment, factory acceptance payment before delivery after the machine testing is ok.



The buyers concerned about the contents. For example:

 1.Q:Offers you the how to pre-sale service? Such as: whether or not to provide the sample? Sample charges? Where the party to bear the freight?

A: can free to provide customers with bag samples were real machine proofing , and shooting video for customer reference.

Send in the proofing paper provided by the customer, the paper freight provided by the customer, to complete the sample bag proofing can be sent free of charge by our company.

2.Q:you provide the service of how the sale? Such as: supplying method of wearing parts? Delivery cycle (orders started)?

A: the damage in the warranty period of the fittings, our company in accordance with the warranty for its free replacement. Product delivery cycle is generally for the signing of the contract within 45 days from the date of.

3.Q:after sale service? Such as shelf life? How to provide service within the warranty period?

A: can provide 1 years of free warranty, long-term training services (the first free, second or subsequent training fees), the warranty period of machine parts can be damaged According to the number of free replacement parts.
